Quarry Screen Mesh
Compare screen constructions and prepare a replacement specification for stone, sand and aggregate processing.
Match the screen to the duty and the deck
A quarry screen replacement needs to match the separation requirement and the installed equipment. Start with the stone or aggregate type, largest feed particles, required product size, moisture condition and deck position. Then record the openings, panel construction, supports and fixing arrangement of the existing screen.
Shandong Shengshi Hengchang supplies woven wire, self cleaning, polyurethane and manganese cast screening media. Use the comparison below to prepare an enquiry. The choice is reviewed against your application and drawing; a screen name or photograph alone does not establish a replacement fit.
Compare quarry screen media
| Screen construction | Application to discuss | Details needed to confirm the specification |
|---|---|---|

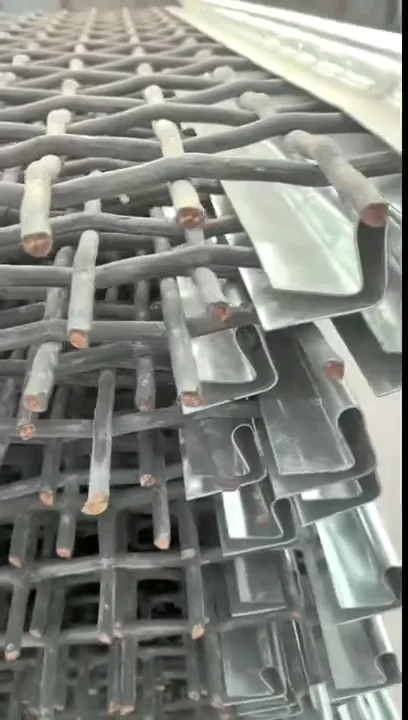

| Woven wire screens | Size classification of stone and aggregate on a tensioned screen deck. | Clear aperture, wire diameter and grade, crimp style, hook profile, tension direction and support spacing. |

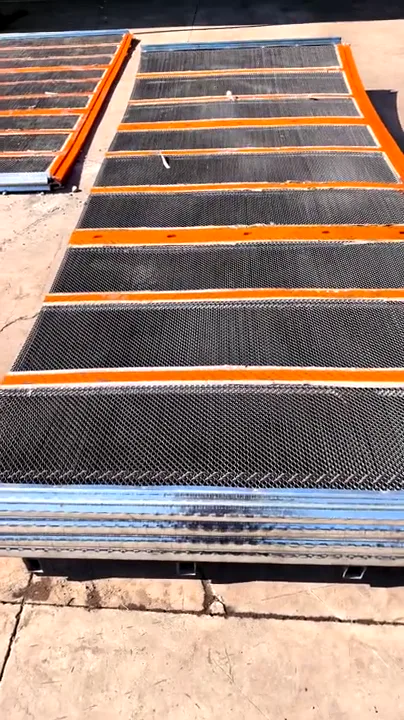

| Self cleaning screen mesh | A deck affected by particles wedging in openings or wet material coating the mesh. | Photographs of the blockage, moisture conditions, wire pattern, aperture, support-strip positions and fixing edges. Review the cause before changing the construction. |

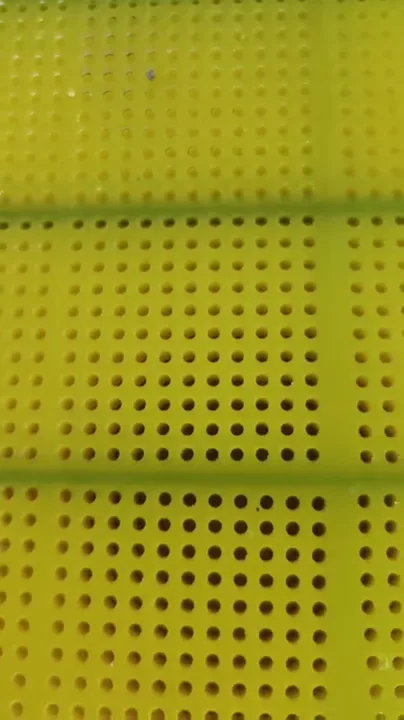

| Polyurethane screen panels | Replacement panels for a compatible mining or aggregate screening deck. | Panel outline and thickness, opening geometry, underside structure, fixing system and deck layout. |
| Dewatering screen panels | Water-removal duties in washed sand or other wet material processing. | Slot width, length and direction, panel orientation, underside supports and the material being dewatered. Specify this duty separately from coarse classification. |
| Manganese cast screen panels | Coarse screening positions exposed to substantial impact from large ore or stone. | Feed and impact conditions, casting dimensions, opening shape and bolt-hole layout. Confirm the ZGMn13 material and water-toughening requirement in the order specification. |
Describe what is happening on the existing screen
Particles are trapped in the openings
Photograph the affected area and a sample of the feed. Provide the opening size, particle shape, wire diameter and deck position. Review the self cleaning screen construction together with the support and tensioning arrangement. A different mesh pattern should be evaluated against the cause of the problem.
Wet or sticky material is covering the screen surface
Describe the moisture condition and when buildup appears. Include photographs of the surface during normal operation or scheduled maintenance. If the process also removes water, provide a separate specification for the dewatering deck; coating of a classification screen and water removal are different requirements.
Wear or damage is concentrated in one part of the deck
Mark the feed end, support positions and damaged areas on a deck photograph. Include the largest feed size and how the material reaches the deck. For substantial impact at coarse screening positions, discuss the cast-panel option. Material selection and installation both need review; footage alone does not establish service life.
The replacement panel does not fit
Compare the underside, hooks, fixing holes and support locations as well as the outer dimensions. Two panels with a similar top surface can require different mounting arrangements. Send the equipment drawing or an old sample where worn edges make measurements uncertain.
How to specify a replacement quarry screen
- Identify the duty. Record the material, wet or dry operation, target separation and the position on the screen deck. State the machine model if known.
- Specify the screening surface. For woven screens, give both the clear opening between wires and the wire diameter. For slotted panels, state slot width, length and direction. A nominal mesh name alone is insufficient.
- Record the panel outline. Provide length, width and panel thickness where applicable, with a consistent unit system. Mark which dimensions come from a worn sample.
- Show how the panel is held. Include a dimensioned hook profile or mounting-hole pattern, tension direction, underside supports and deck support spacing.
- Attach useful views. Supply an overall deck photograph and front, back and edge views of the panel, together with a drawing or sample reference.
- Define the supply request. Include quantity, destination, requested delivery window and any material or inspection documentation required.
A clear aperture is the opening through which material passes; wire diameter describes the wire itself. Keep these measurements separate when comparing woven wire screens. Final dimensions, material and mounting details are confirmed during quotation and drawing review.
Use workshop footage to check construction details
Compare the woven screen production video with the self cleaning wire-pattern guide. For polyurethane media, watch the polyurethane workshop video and check the panel specification checklist. These views support a construction discussion; they do not replace a dimensioned drawing or an application review.
Common quarry screening questions
Are woven wire and polyurethane panels interchangeable?
Not automatically. Compare the complete panel geometry, support system, fixing arrangement and screening requirement. Send the existing deck and panel details before changing screen construction.
Should I specify mesh count or aperture?
Provide the clear opening in a stated unit, together with wire diameter or the panel opening geometry. Include the original specification if it uses a mesh designation so the intended opening can be checked.
Can self cleaning mesh solve every blockage problem?
The result depends on the feed, moisture, wire pattern and deck setup. Describe whether particles wedge into openings or material coats the surface, and provide photographs. The construction is reviewed for that specific duty.
Can I request a custom quarry screen?
Custom openings, panel dimensions and mounting details can be reviewed from a drawing or sample. Confirm the final specification, required quantity and inspection requirements before production.
